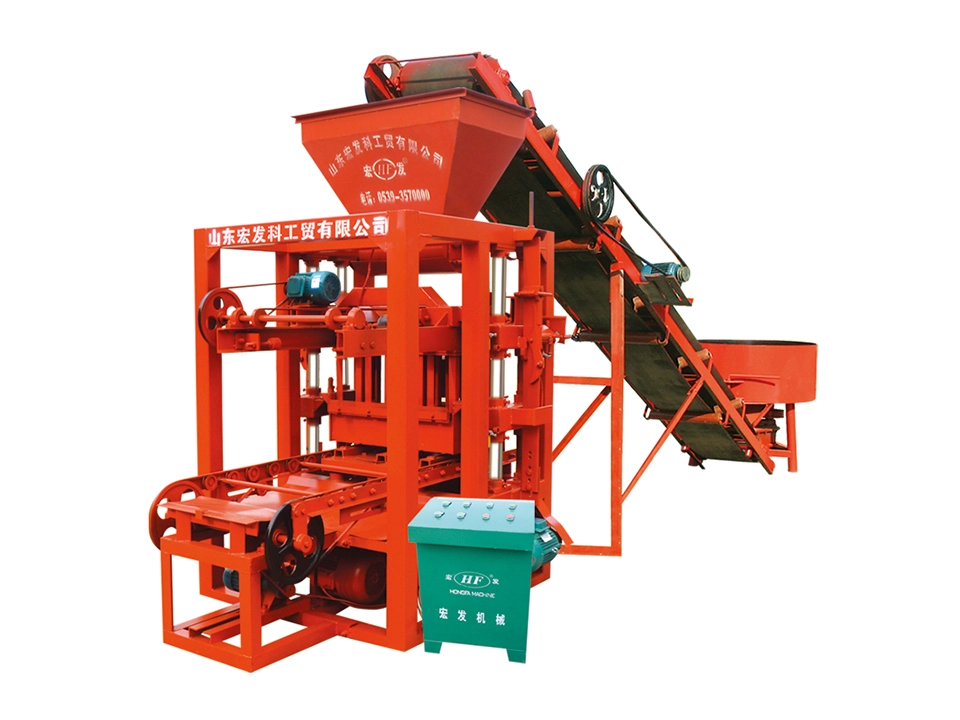

QT4‑26D Semi-automatic Concrete Block Making Machine | Efficient Solid Brick Production Equipment_Semi-automatic concrete block machine_Products

Product advantages

Advantage of QT4‑26D Semi-automatic Concrete Block Making Machine

1. Dual‑vibration Compaction System, Solve High Waste Caused by Porous & Cracked Solid Bricks

Solid bricks need sufficient compaction due to full material filling. Insufficient vibration will lead to porous inner structure, surface honeycombs, demolding cracks and breakage during transportation, bringing double waste of raw materials and labor cost. QT4‑26D is equipped with heavy‑duty lower vibration box plus upper attached vibrator working synchronously, delivering 45 kN exciting force within 2800‑4200 r/min, specially tuned for solid brick full‑fill compaction. Pre‑vibration during feeding distributes concrete evenly inside mold cavity. Synchronized upper‑and‑lower vibration after ram‑in discharges internal air thoroughly and achieves consistent density throughout the brick.

Real benefits for buyers: Greatly lower reject rate of cracked and broken bricks, save cement and aggregate cost. Finished solid bricks keep stable strength to pass construction site acceptance. Factories are capable to undertake engineering brick orders without rework risk or customer loss caused by poor brick quality.

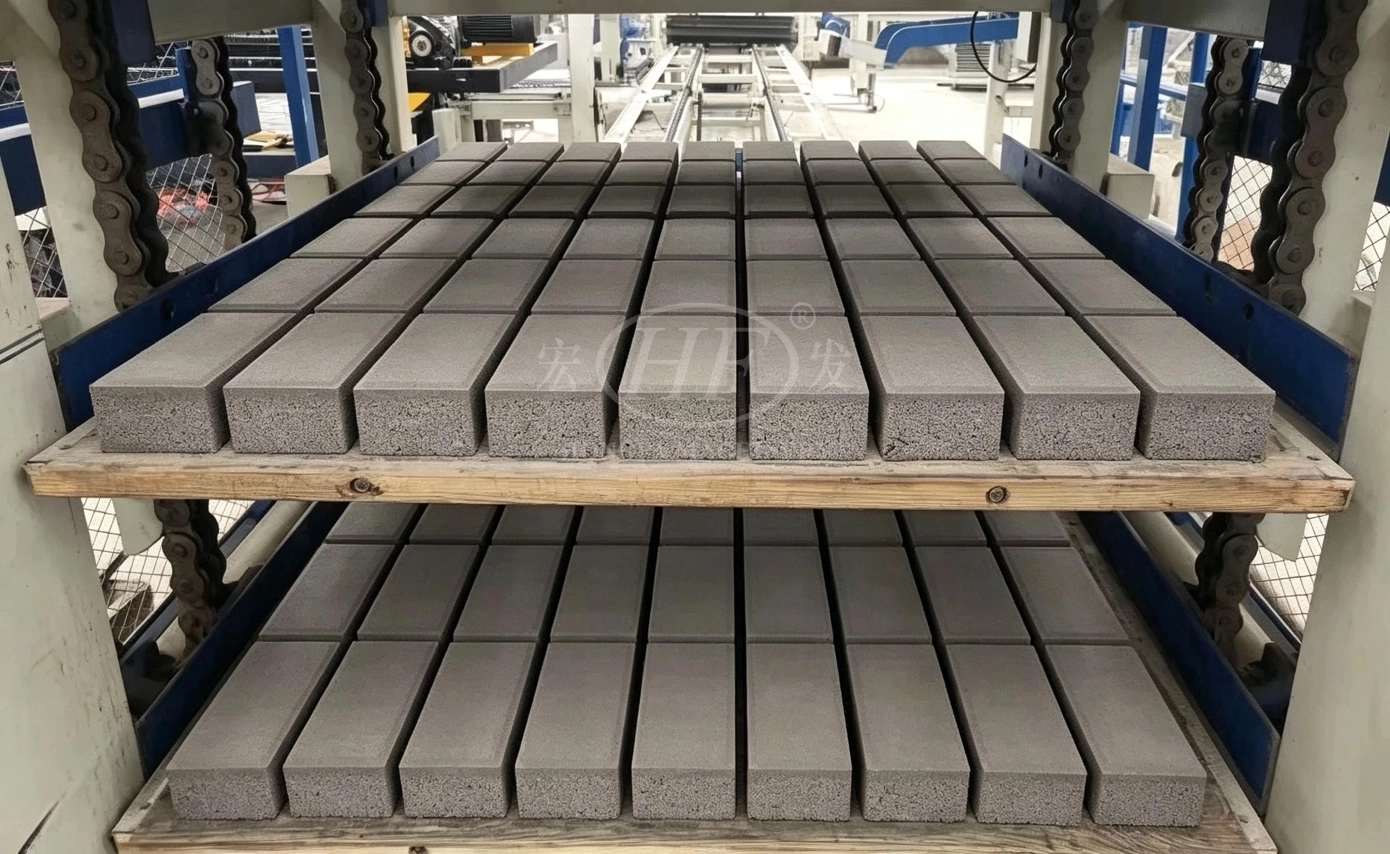

Solid Brick from QT4‑26D Semi-automatic Concrete Block Making Machine

2. Standard Fast‑change Mold Assembly, Handle Multi‑spec Solid Brick & Block Orders Without Extra Machine Investment

Most small brick factories face unstable order flow: large‑batch solid brick orders may alternate with perforated brick or hollow block orders. Buying separate machines for each product raises capital cost, while idle machines occupy workshop space in off‑peak seasons. This machine adopts locating pin plus bolt positioning for mold assembly. Upper mold and lower mold can be disassembled independently without welding or cutting modification. Install dedicated solid‑brick molds for solid brick production, and switch molds quickly for perforated bricks or hollow blocks when orders change.

Real benefits for buyers: One host covers multiple product lines and avoids extra equipment investment. Improve workshop space utilization and prevent capital tied up in idle machines. Respond fast to customers’ specification changes and strengthen your order‑winning capacity.

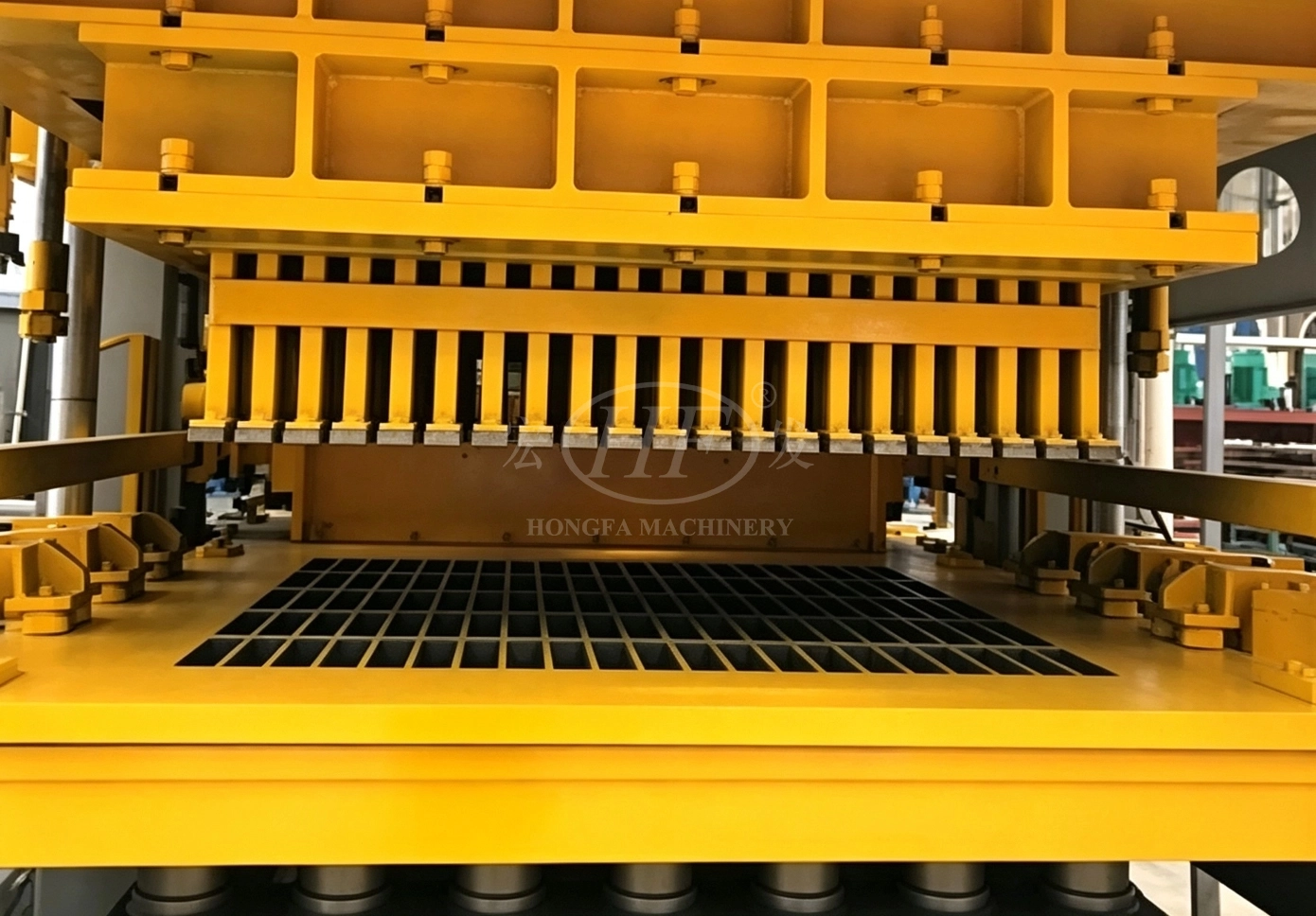

Mould of QT4‑26D Semi-automatic Concrete Block Making Machine

3. Stable 26s Molding Cycle with Dual Feeding Modes, Cover Mass Production & Urgent Small‑batch Orders, Control Labor Expense

Solid brick production demands stable feeding. Insufficient feeding causes incomplete bricks while over‑feeding brings extra cleaning work. QT4‑26D runs a steady 26‑second cycle per mold. Both electric automatic feeding and manual feeding are available. For mass orders, use electric feeding together with mixers and belt conveyors to build a semi‑automatic line, minimizing repeated manual material shoveling. For trial or urgent small‑batch orders, switch to manual feeding to adjust feeding volume flexibly. The conveyor automatically delivers fresh molded solid bricks out of vibration platform instead of manual carrying.

Real benefits for buyers: Daily output reaches 3000‑4000 bricks to satisfy small‑medium plant shipment demand. Semi‑automatic line reduces labor for feeding and handling, cutting long‑term labor cost. Deliver both bulk and small urgent orders on‑time and avoid order breach risk.

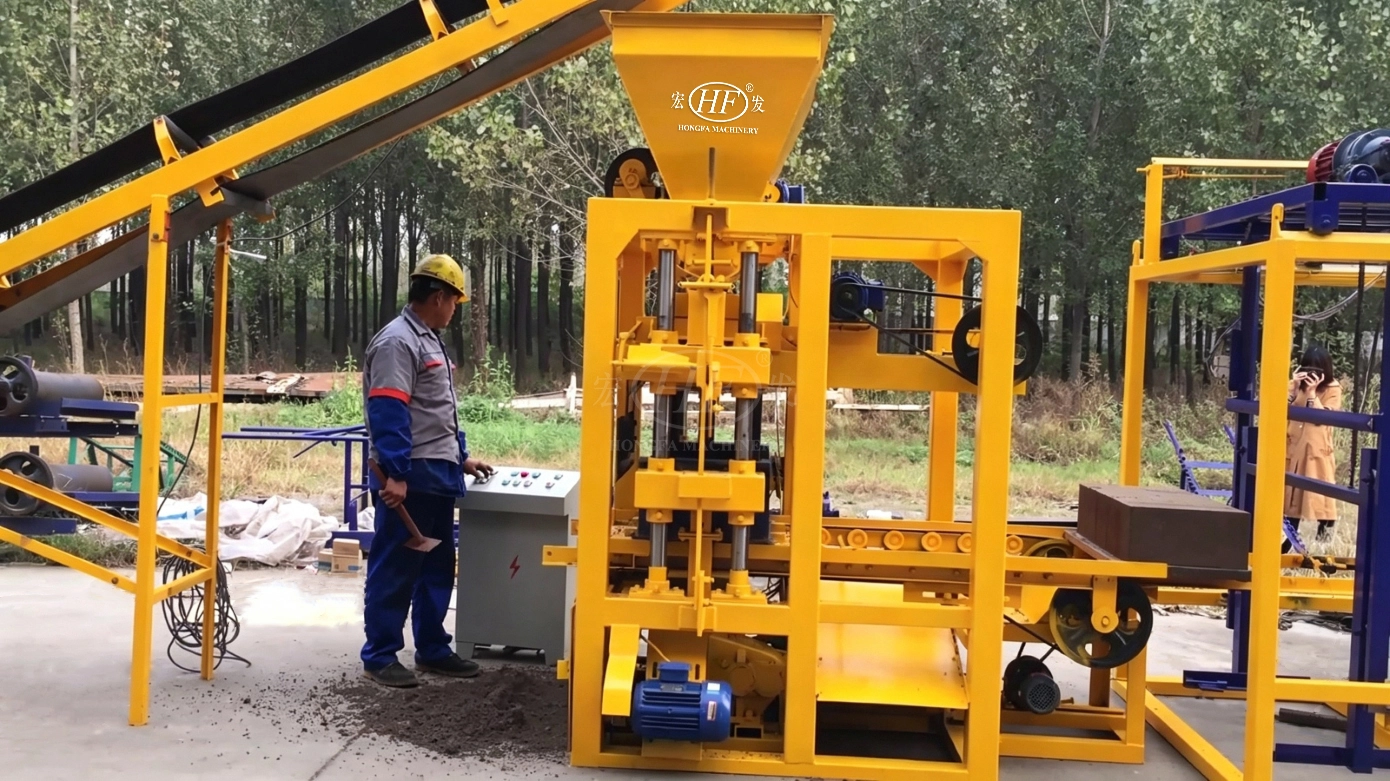

QT4‑26D Semi-automatic Concrete Block Making Machine

4. Heavy‑duty Gantry Steel Frame & Four‑shaft Wear‑resistant Guidance, Sustain Long‑hour Solid‑brick Production & Reduce Downtime Loss

Continuous heavy vibration during solid brick manufacturing may deform ordinary machines. Loose guiding clearance results in skewed bricks, dimension deviation and frequent breakdowns, delaying order delivery. QT4‑26D adopts reinforced gantry steel frame specially strengthened for 45 kN heavy exciting force. Four vertical guiding shafts with wear‑resistant sleeves keep ram and mold box moving vertically with high positioning accuracy. It largely avoids position offset and mold jamming under long‑time heavy vibration.

Real benefits for buyers: Support non‑stop rush production in peak seasons. Less frequent maintenance and lower spare‑part expense. Prevent order loss and compensation caused by machine breakdown. Solid bricks keep unified dimension and reduce extra sorting work for defective size.

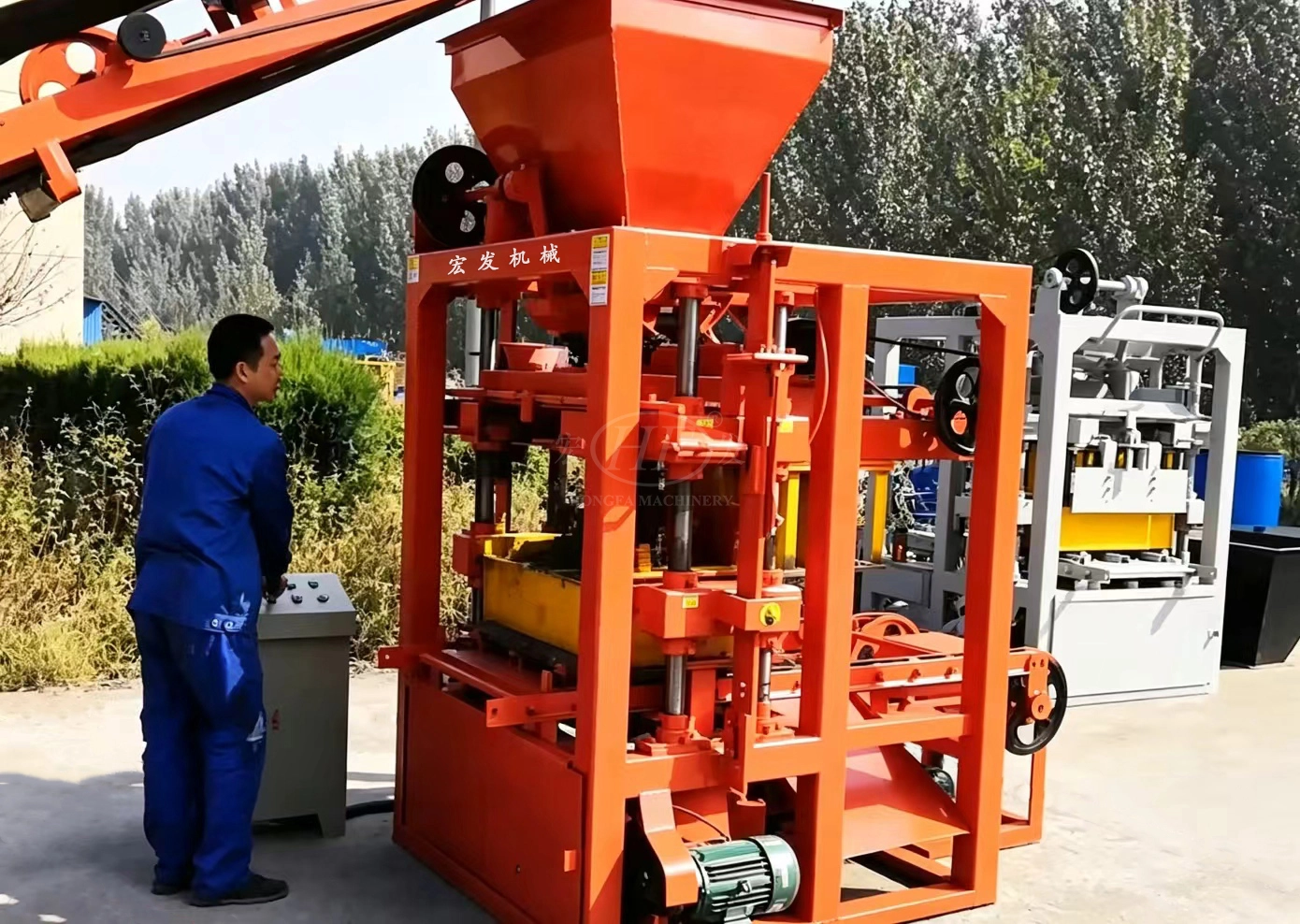

QT4‑26D Semi-automatic Concrete Block Making Machine

5. Broad Raw‑material Compatibility, Utilize Local Industrial Waste to Cut Solid Brick Material Cost

Cement, sand and aggregate take the major part of solid brick production cost. Long‑distance material transport erodes profit margin. Many regions have abundant industrial residues such as fly ash and slag which cannot be processed by ordinary brick machines. QT4‑26D is not limited to premium aggregates. Besides regular river sand, crushed stone and stone dust, it can produce qualified solid bricks with fly ash, furnace slag, gangue and other local industrial residues via formula adjustment. Local accessible materials are fully available.

Real benefits for buyers: Cut transportation cost by sourcing materials locally. Low‑cost industrial residues lower per‑brick material expense. Production will not halt due to shortage of specific raw materials even with fluctuation of local material quality.
